Belt & Tire Pullers

We offer an assortment of pullers sized for the extrusion of micro tubing up to 8" diameter pipe, with tire, wheel and belt configurations. Our belt pullers for profile range from 2" wide x 15" contact length up to 6" wide x 32" contract length. All models typically have AC Vector motors for brushless operation and are manufactured in Fulleron, CA. Please contact the factory for additional information.

Tire & Wheel:

Model AB-40:      4" maximum opening, four wheel puller. Typically used for small profile, tubing, and pipe. Our most                                      economical tire/wheel puller.

Model 400:          4" maximum opening, four tire puller. Pneumatic tires enable greater gripping capability over our AB-40                               and allow for enhanced traction of rigid pipe extrusion. Manual handwheel control of top and bottom tire                               banks.

Model 400 tire puller

Model 450:         4" maximum opening, four tire puller with manual adjustment of top tire bank and independent air                                        cylinder control of bottom tire bank. Similar to our Model 400, but allows for a more measured pressure                                on the extrudate utilizing the adjustable air bank controls.

Model 872:        8" maximum opening, four tire puller with air cylinder control of top and bottom tire banks. All four wheels                           gear driven. Top wheels manually adjustable. Bottom wheels air loaded independently for measured                                   pressure on extrudate.

Model 872 tire puller shown with optional guards

Custom:           Contact factory for more information

Custom profile wheel puller


Belt:

Model PV200:     0-2" capacity opening, 2" wide belts, 15" contact length puller with air cylinder control of bottom belt. Top                             belt manually adjusted via handwheel. Bottom belt air loaded via single air cylinder for measured                                         pressure on extrudate. Ideal for small tubing and profile.

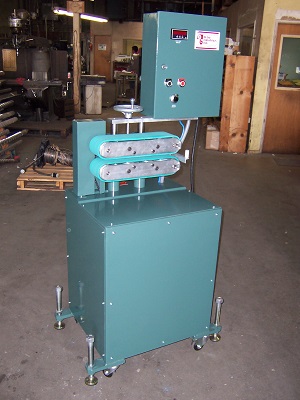

PV200 puller


Model PV400:    0-4" capacity opening, 4" wide belts, 32" contact length puller with air cylinder control of bottom belt. Top                            belt manually adjusted via handwheel. Bottom belt air loaded via single air cylinder for measured                                          pressure on extrudate. Ideal for use with tubing and profile requiring vacuum processing for part and size                            stability.

Model PV406:   0-4" capacity opening, 6" wide belts, 32" contact length puller with air cylinder control of bottom belt. Top                             belt manually adjusted via handwheel. Bottom belt air loaded via a single air cylinder for measure                                         pressure on extrudate. Ideal for use with large profiles requiring vacuum processing for part sizing and                                 stability.

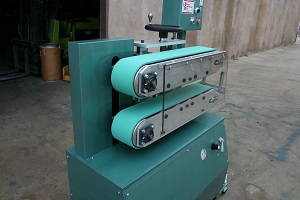

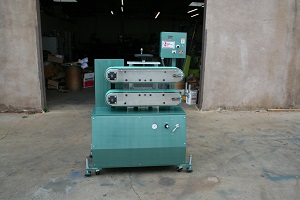

PV406 puller

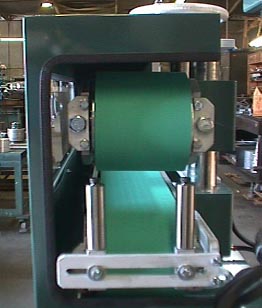

PV406 puller entrance view with guide rolls and optional guards


Puller/Cutter Combination: *CURRENTLY UNAVAILABLE*

PV212SPC:    0-2" capacity opening, 2" wide belts, 15" contract length puller. Top and bottom belts manually adjusted via                         single handwheel control. Servo motor and processor for precise puller speed and length count. Servo                                 motor and processor for cutting application coupled to puller frame with hardened slides for ear of cutter                             movement. No gearboxes or clutches. Blade holder fixtured directly on servo motor shaft. No moving parts                         to wear or replace. Ideal for small tubing and profile. Digital touch screen micro-processor for input of puller                         speed and extrudate cut length.

PV212SPC puller/cutter
